Name: LD715x-100M16
Brand: MYSOOW
Availability: InStock
Rating: 5 (1 reviews)

LD715x-100M16

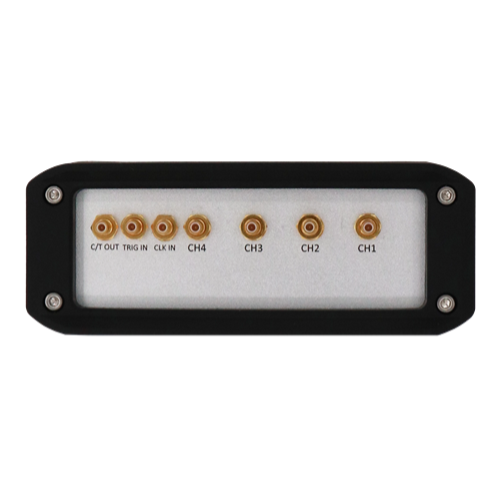

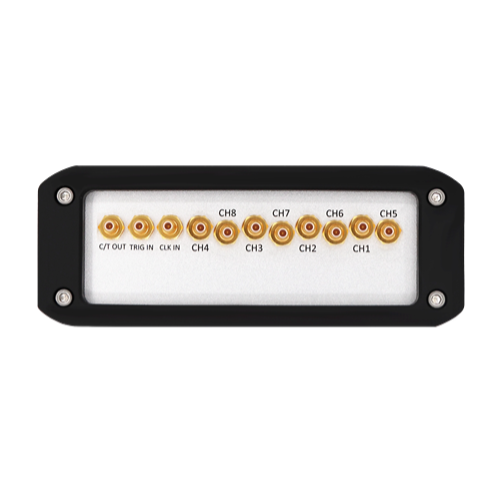

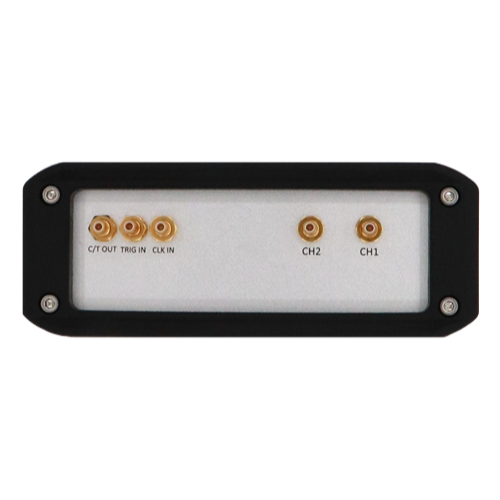

2/4/8 channel synchronous sampling；
100Msps per channel，16bit；
Input bandwidth DC-50MHz；
Input range: can be set as ±1V、±2V、±5V、±10V；
Input impedance: 50Ω/1MΩ；

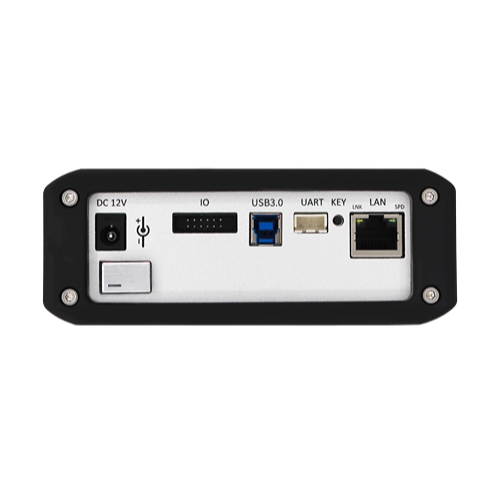

Multiple Communication Interfaces Available：USB 3.0/RJ45/10GE optical port；
support FPGA secondary development；
Software development package supports C/C++，LabVIEW，Matlab etc；
System supports Windows, Linux。

Description

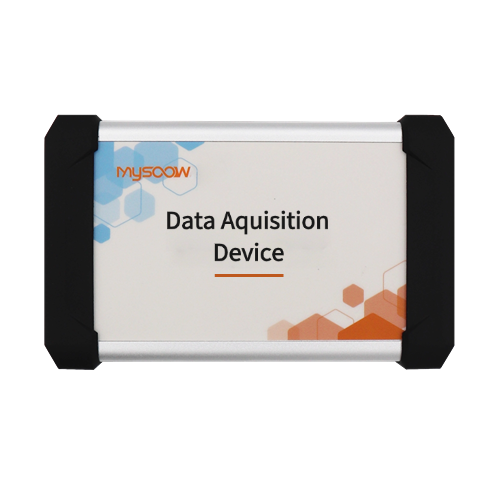

·LD715x-100M16 is Mysoow’s “Agile” series acquisition device, supporting 2/4/8 channel, 16bit，achieving 100Msps synchronous sampling，Onboard DDR3 memory granules, with 1GB storage volume，larger volume customization is also supported.
·Multiple interface buses are available, with optional support for RJ45, USB 3.0, and 10G optical ports.
·Support multiple triggering modes including hardware triggering, software triggering and manual triggering etc. Continuous sampling mode is also supported.
·Support the secondary development for users, providing DLL dynamic link pool.
·Equipped with host computer Demo software, supporting the configuration of board and real-time display and storage of data.
Application Scenarios：Optical Coherence Tomography（OCT）、Non-destructive detection、Ware form recorder、Multi-channel transient recorder

Ordering Information

Model	Description
LD7152R-100M16	2 channel 16bit，100Msps，RJ45，bandwidth DC-50MHz
LD7154R-100M16	4 channel 16bit，100Msps，RJ45，bandwidth DC-50MHz
LD7158R-100M16	8 channel 16bit，100Msps，RJ45，bandwidth DC-50MHz
LD7152U-100M16	2 channel 16bit，100Msps，USB 3.0，bandwidth DC-50MHz
LD7154U-100M16	4 channel 16bit，100Msps，USB 3.0，bandwidth DC-50MHz
LD7158U-100M16	8 channel 16bit，100Msps，USB 3.0，bandwidth DC-50MHz
LD7152T-100M16	2 channel 16bit，100Msps，10G optical port，bandwidth DC-50MHz
LD7154T-100M16	4 channel 16bit，100Msps，10G optical port，bandwidth DC-50MHz
LD7158T-100M16	8 channel 16bit，100Msps，10G optical port，bandwidth DC-50MHz

Documentation Download

LD715x-xx16 Introduction
