LD734x-80M16

2/4 channel synchronous sampling,2/4 channel synchronous playback;
80Msps per channel,16bit;
Input bandwidth DC-40MHz;
Input range: can be set as ±1V、±2V、±5V、±10V;
Input impedance: 50Ω/1MΩ;
output range:±10V ;

Multiple Communication Interfaces Available:USB3.0/RJ45/10GE optical port;
support FPGA secondary development;
Software development package supports C/C++,LabVIEW,Matlab etc;
System supports Windows, Linux。
  • LD734x-80M16
  • LD734x-80M16
  • LD734x-80M16
  • LD734x-80M16
  • LD734x-80M16
  • LD734x-80M16

Description

Series

Category

Bus(Optional)

Resolution

Channel

Sampling Rate

Bandwidth

Storage depth

System support

LD734x-80M
16

AD

RJ45/USB3.0/

10G optical ports

16bit

2/4 channel

80Msps

DC-40MHz

1GB

Windows

Linux

DA

16bit

2/4 channel

80Msps

DC-10MHz


·
LD734x-80M16 is Mysoow’s “Agile” series  acquisition and playback device, supporting 2/4 channel, 16bit,achieving 80Msps synchronous sampling,Onboard DDR3 memory granules, with 1GB storage volume,larger volume customization is also supported.

·Multiple interface buses are available, with optional support for RJ45, USB 3.0, and 10G optical ports.
·Support multiple triggering modes including hardware triggering, software triggering and manual triggeringetc. Continuous sampling mode is also supported.
·Support the secondary development for users, providing DLL dynamic link pool.
·Equipped with host computer Demo software, supporting the configuration of board and real-time display and storage of data.
Application Scenarios:Optical Coherence Tomography(OCT)、Non-destructive detection、Ware form recorder、Multi-channel transient recorder

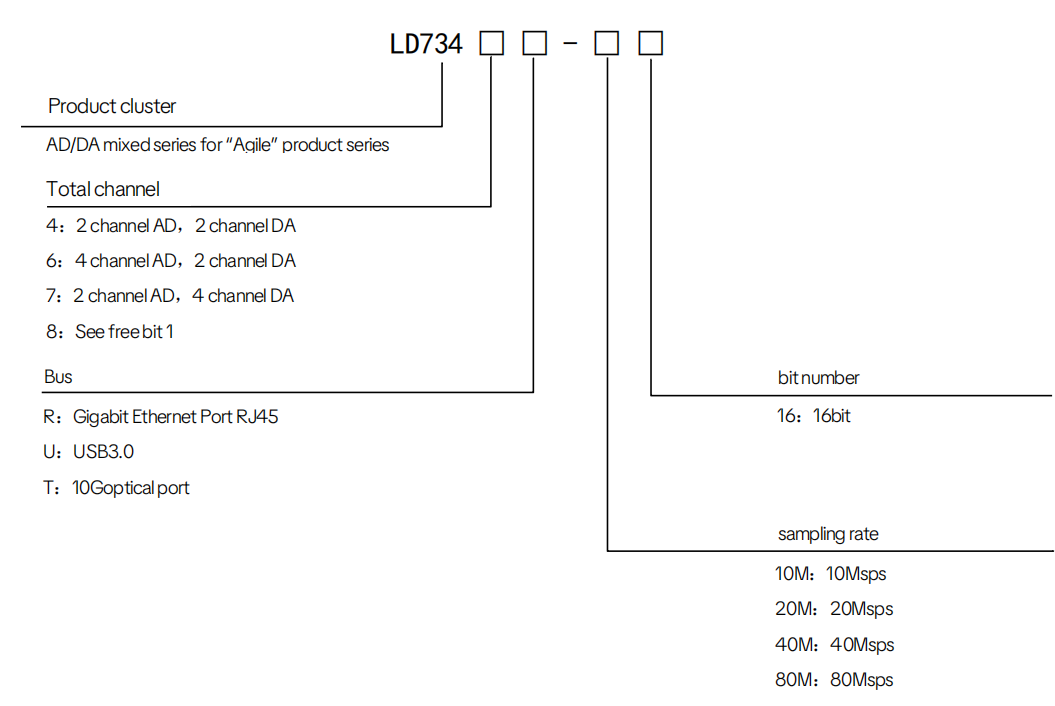

Ordering Naming Convention
