Name: LD814x-xx14
Brand: MYSOOW
Availability: InStock
Rating: 5 (1 reviews)

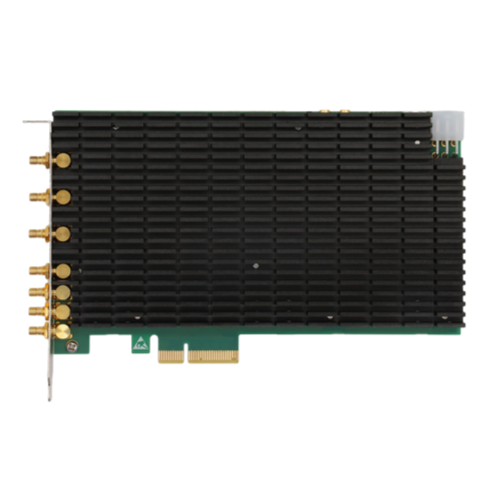

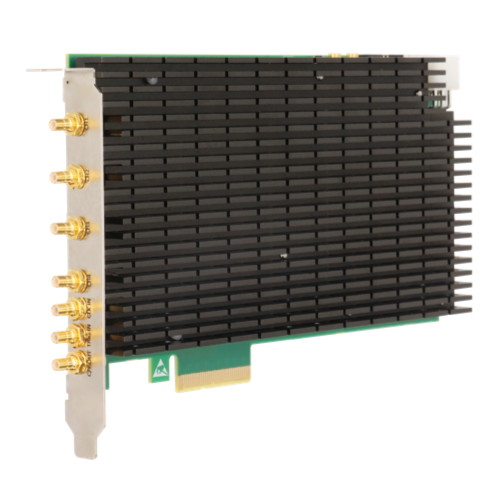

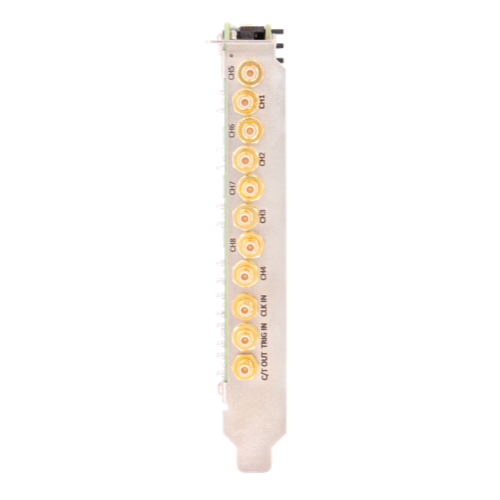

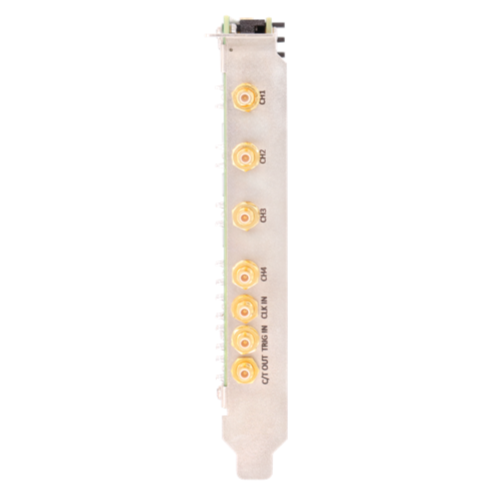

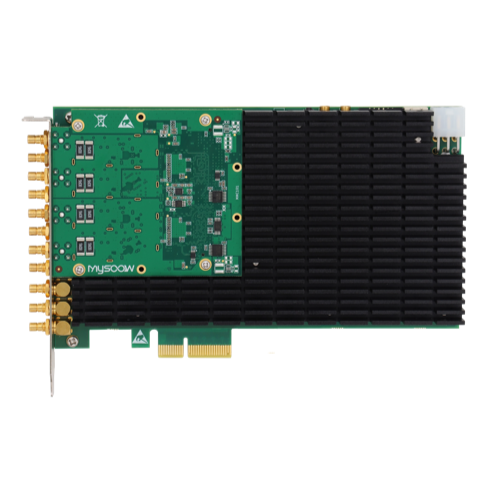

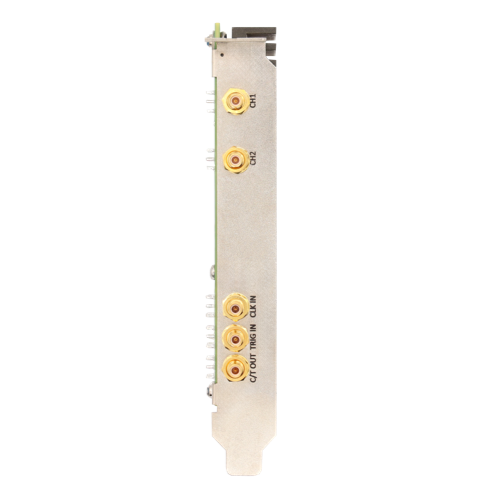

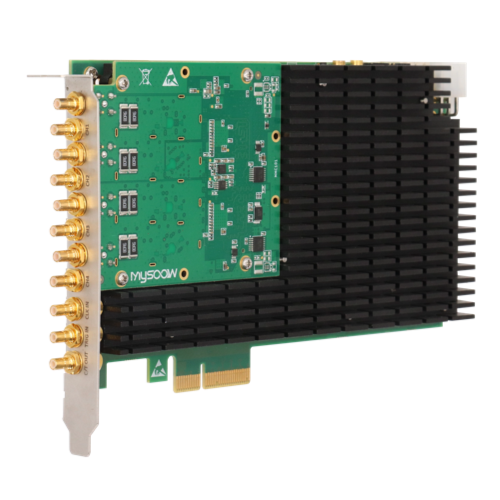

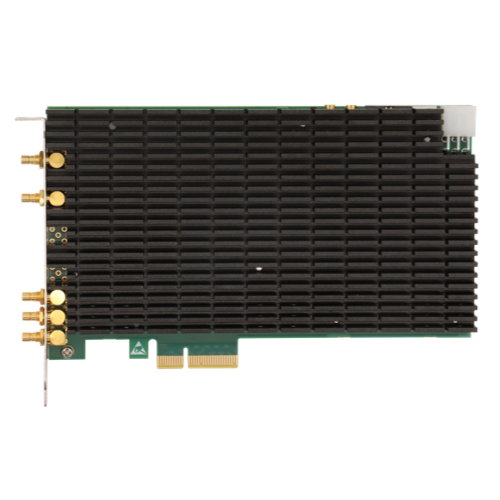

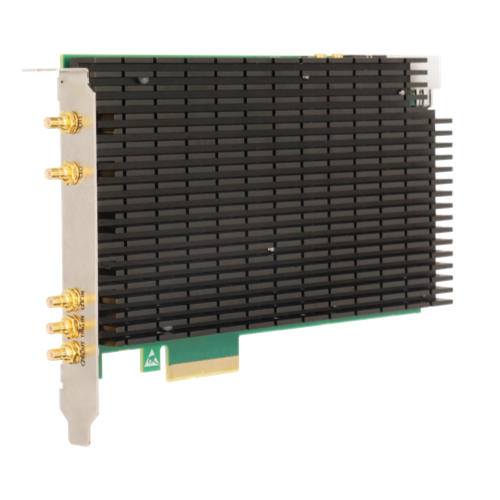

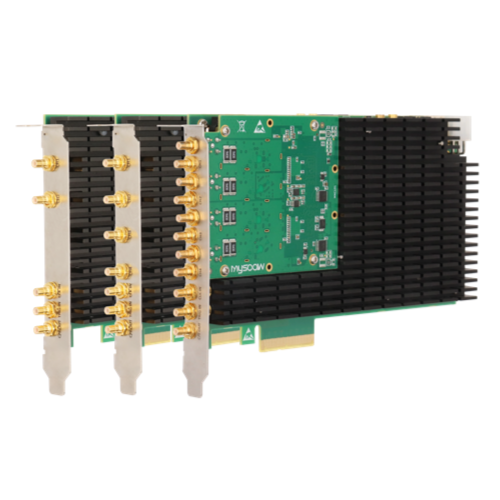

LD814x-xx14

2/4/8 channel synchronous sampling；
10/20/40/80Msps per channel，14bit；
Input bandwidth DC-5/10/20/40MHz；
Input range: can be set as ±1V、±2V、±5V、±10V；
Input impedance: 50Ω/1MΩ；
PCIe x4 Gen2 communication interface；
support FPGA secondary development；
Software development package supports C/C++，LabVIEW，Matlab etc；
System supports Windows, Linux。

Description

·LD814x-xx14 is Mysoow’s “Agile” series PCIe acquisition card, supporting 2/4/8 channel, 14bit，achieving 10/20/40/80Msps synchronous sampling，Onboard DDR3 memory granules, with 512MB/1GB storage volume，larger volume customization is also supported.
·PCIe x4 Gen2 bus interface, supporting the data speed up to 12.5Gbps.
·Support multiple triggering modes including hardware triggering, software triggering and manual triggering etc. Continuous sampling mode is also supported.
·Support the secondary development for users, providing DLL dynamic link pool.
·Equipped with host computer Demo software, supporting the configuration of board and real-time display and storage of data.
Application Scenarios：Optical Coherence Tomography（OCT）、Non-destructive detection、Ware form recorder、Multi-channel transient recorder

Ordering Information

Model	Description
LD8142-10M14	2 channel 14bit，10Msps，PCIe x4 Gen2，bandwidth DC-5MHz
LD8142-20M14	2 channel 14bit，20Msps，PCIe x4 Gen2，bandwidth DC-10MHz
LD8142-40M14	2 channel 14bit，40Msps，PCIe x4 Gen2，bandwidth DC-20MHz
LD8142-80M14	2 channel 14bit，80Msps，PCIe x4 Gen2，bandwidth DC-40MHz
LD8144-10M14	4 channel 14bit，10Msps，PCIe x4 Gen2，bandwidth DC-5MHz
LD8144-20M14	4 channel 14bit，20Msps，PCIe x4 Gen2，bandwidth DC-10MHz
LD8144-40M14	4 channel 14 bit，40Msps，PCIe x4 Gen2，bandwidth DC-20MHz
LD8144-80M14	4 channel 14bit，80Msps，PCIe x4 Gen2，bandwidth DC-40MHz
LD8148-10M14	8 channel 14bit，10Msps，PCIe x4 Gen2，bandwidth DC-5MHz
LD8148-20M14	8 channel 14bit，20Msps，PCIe x4 Gen2，bandwidth DC-10MHz
LD8148-40M14	8 channel 14bit，40Msps，PCIe x4 Gen2，bandwidth DC-20MHz
LD8148-80M14	8 channel 14bit，80Msps，PCIe x4 Gen2，bandwidth DC-40MHz

Documentation Download

LD814x-xx14 Introduction
