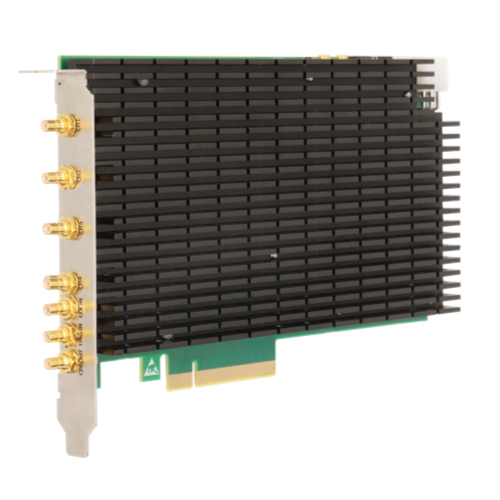

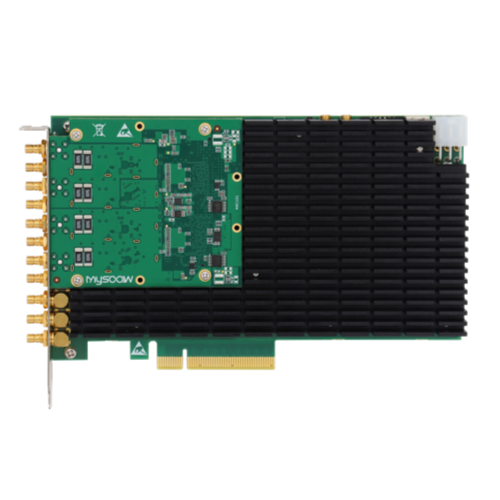

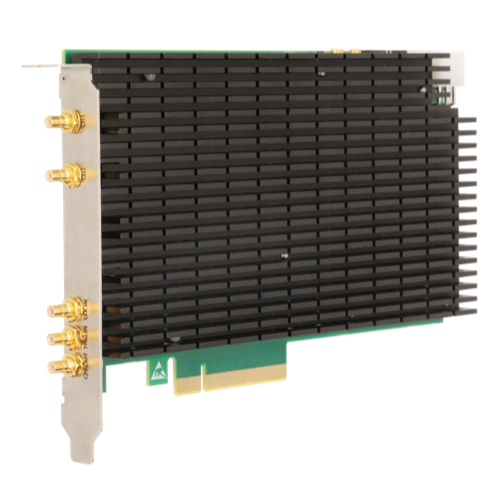

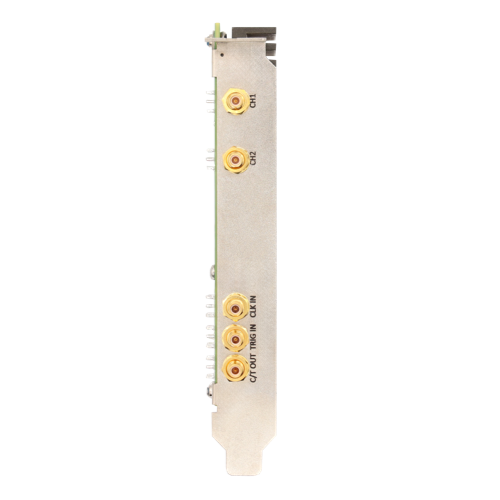

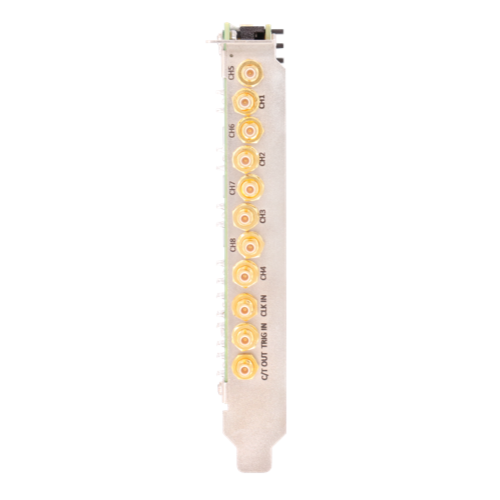

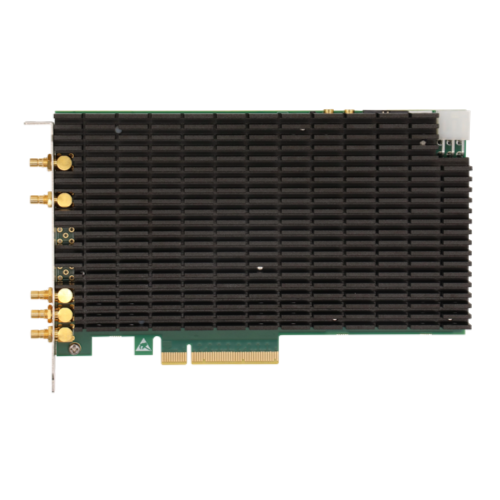

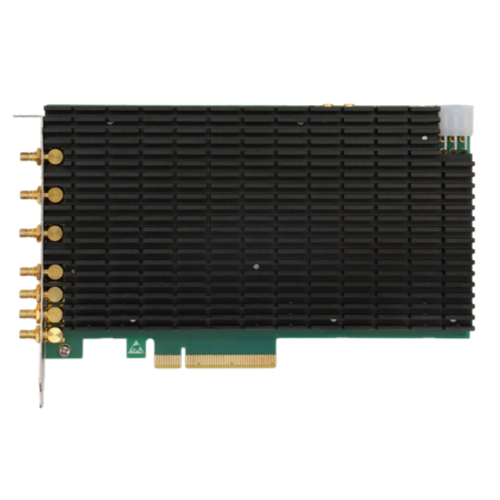

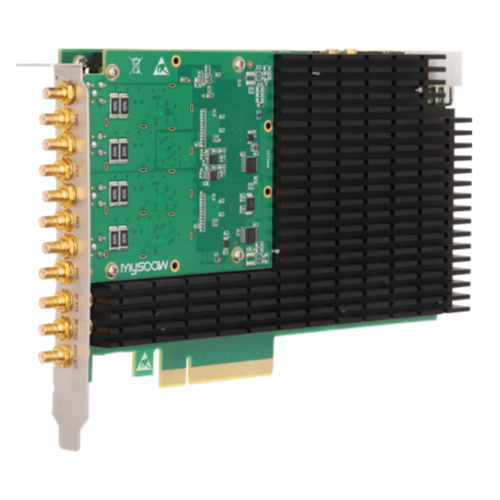

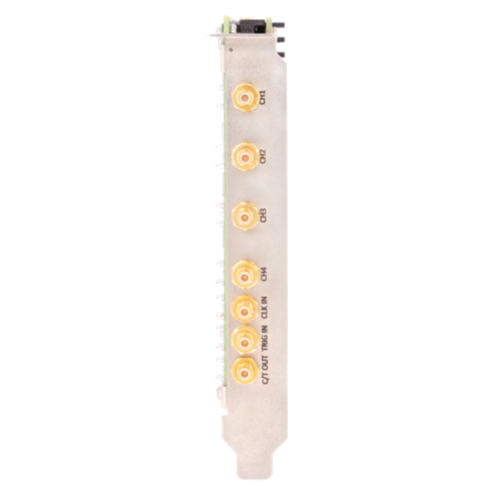

LD815x-125M14

Name: LD815x-125M14
Brand: MYSOOW
Availability: InStock
Rating: 5 (1 reviews)

2/4/8 channel synchronous sampling；
125Msps per channel，14bit；
Input bandwidth DC-60MHz；
Input range: can be set as ±1V、±2V、±5V、±10V；
Input impedance: 50Ω/1MΩ；
PCIe x8 Gen2 communication interface；
support FPGA secondary development；
Software development package supports C/C++，LabVIEW，Matlab etc；
System supports Windows, Linux。

GET A QUOTE

Add to Quote List View Quote List

Description

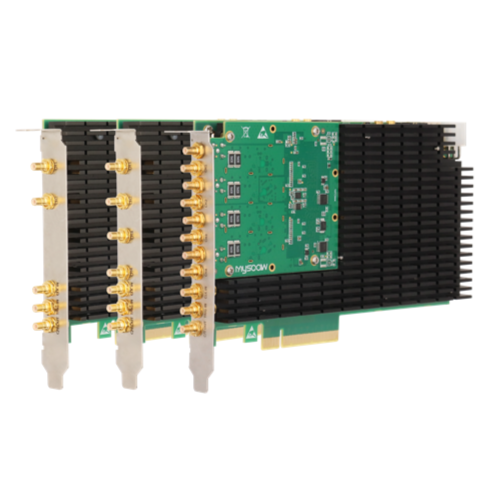

·LD815x-125M14 is Mysoow’s “Agile” series PCIe acquisition card, supporting 2/4/8 channel, 14bit，achieving 125Msps synchronous sampling，Onboard DDR3 memory granules, with 1GB storage volume，larger volume customization is also supported.
·PCIe x8 Gen2 bus interface, supporting the data speed up to 20Gbps.
·Support multiple triggering modes including hardware triggering, software triggering and manual triggering etc. Continuous sampling mode is also supported.
·Support the secondary development for users, providing DLL dynamic link pool.
·Equipped with host computer Demo software, supporting the configuration of board and real-time display and storage of data.
Application Scenarios：Optical Coherence Tomography（OCT）、Non-destructive detection、Ware form recorder、Multi-channel transient recorder

Ordering Information

Model	Description
LD8152-125M14	2 channel 14bit，125Msps，PCIe x8 Gen2，bandwidth DC-60MHz
LD8154-125M14	4 channel 14bit，125Msps，PCIe x8 Gen2，bandwidth DC-60MHz
LD8158-125M14	8 channel 14bit，125Msps，PCIe x8 Gen2，bandwidth DC-60MHz

Documentation Download

LD815x-xx14 Introduction
