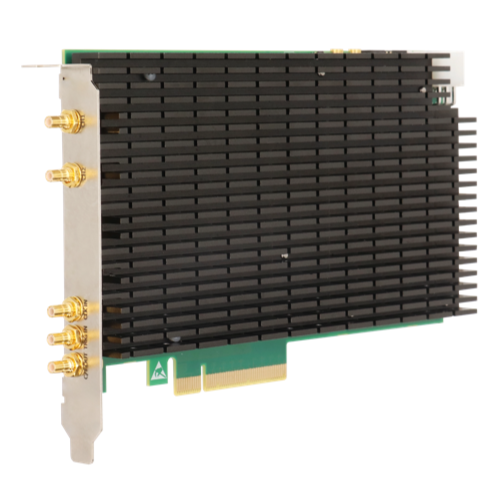

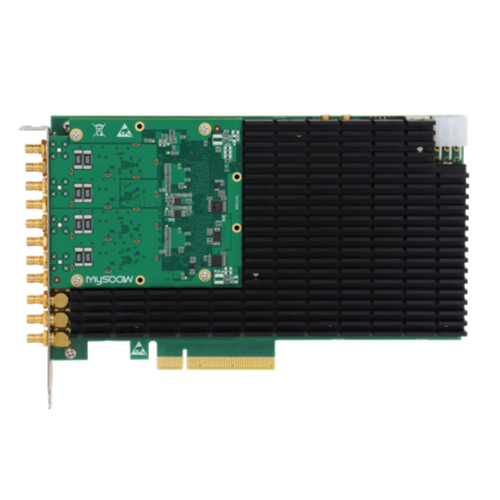

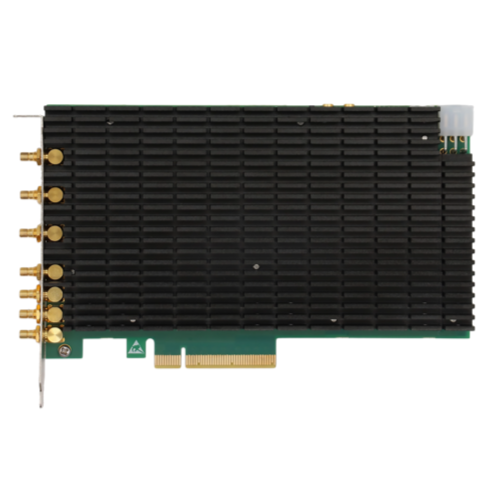

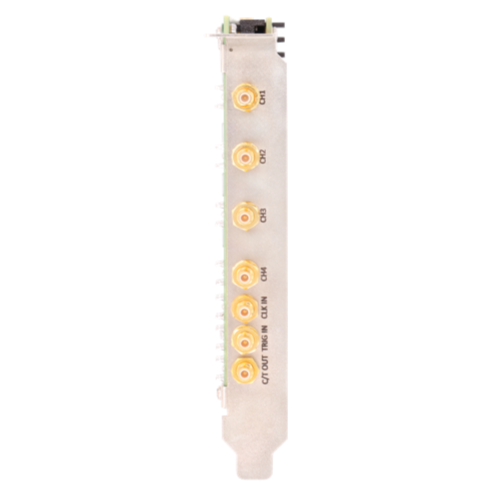

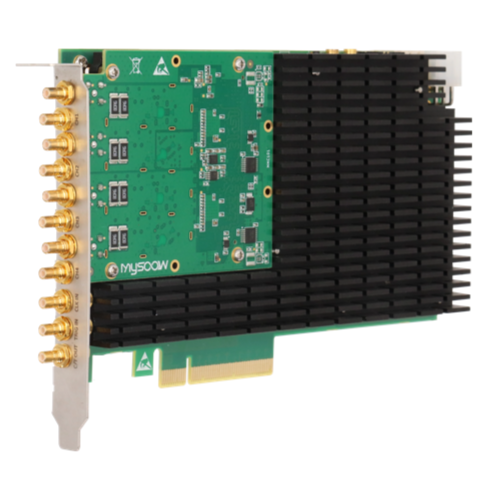

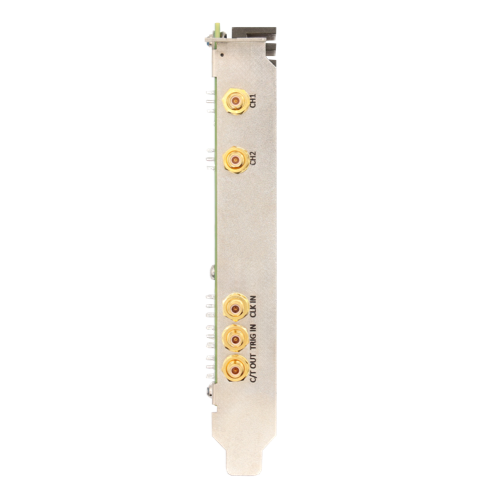

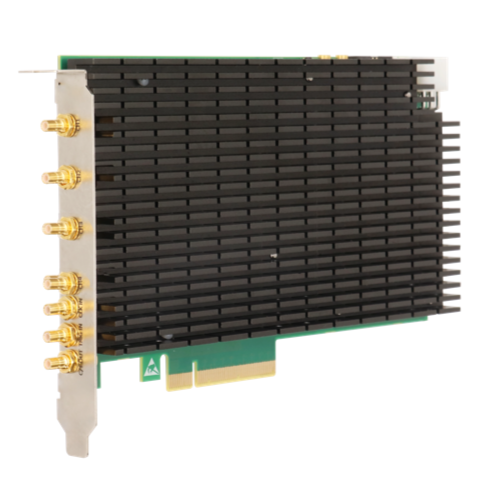

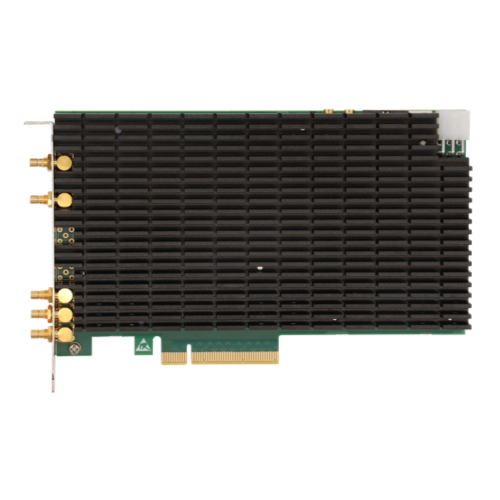

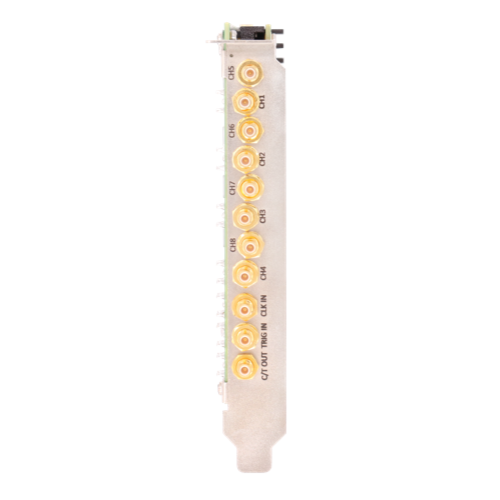

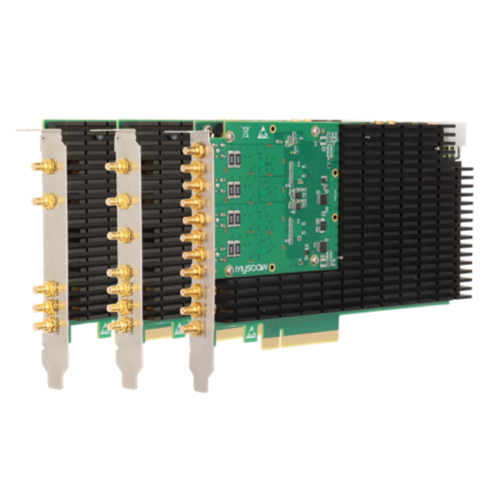

LD815x-250M16

Name: LD815x-250M16
Brand: MYSOOW
Availability: InStock
Rating: 5 (1 reviews)

2/4/8 channel synchronous sampling；
250Msps per channel，16bit；
Input bandwidth DC-120MHz；
Input range: can be set as ±1V、±2V、±5V、±10V；
Input impedance: 50Ω/1MΩ；
PCIe x8 Gen2 communication interface；
support FPGA secondary development；
Software development package supports C/C++，LabVIEW，Matlab etc；
System supports Windows, Linux。

GET A QUOTE

Add to Quote List View Quote List

Description

·LD815x-250M16 is Mysoow’s “Agile” series PCIe acquisition card, supporting 2/4/8 channel, 16bit，achieving 250Msps synchronous sampling，Onboard DDR3 memory granules, with 2GB storage volume，larger volume customization is also supported.
·PCIe x8 Gen2 bus interface, supporting the data speed up to 20Gbps.
·Support multiple triggering modes including hardware triggering, software triggering and manual triggering etc. Continuous sampling mode is also supported.
·Support the secondary development for users, providing DLL dynamic link pool.
·Equipped with host computer Demo software, supporting the configuration of board and real-time display and storage of data.
Application Scenarios：Optical Coherence Tomography（OCT）、Non-destructive detection、Ware form recorder、Multi-channel transient recorder

Ordering Information

Model	Description
LD8152-250M16	2 channel 16bit，250Msps，PCIe x8 Gen2，bandwidth DC-120MHz
LD8154-250M16	4 channel 16bit，250Msps，PCIe x8 Gen2，bandwidth DC-120MHz
LD8158-250M16	8 channel 16bit，250Msps，PCIe x8 Gen2，bandwidth DC-120MHz

Documentation Download

LD815x-xx16 Introduction
