·LD817x-3G14 is Mysoow’s “Agile” series PCIe acquisition card, supporting 2/4 channel, 14bit，achieving 3Gsps synchronous sampling，Onboard DDR4 memory granules,featuring a 128-bit bus width and 8GB storage volume，larger volume customization is also supported. ·PCIe x8 Gen3 bus interface, supporting the data speed up to 48Gbps. ·Support multiple triggering modes including hardware triggering, software triggering and manual triggering etc. Continuous sampling mode is also supported. ·Support the secondary development for users, providing DLL dynamic link pool. ·Equipped with host computer Demo software, supporting the configuration of board and real-time display and storage of data. Application Scenarios：Optical Coherence Tomography（OCT）、Non-destructive detection、Ware form recorder、Multi-channel transient recorder、Life science 、Particle physics、Mass spectrometry analysis、 Communication 、Bandwidth signal analysis

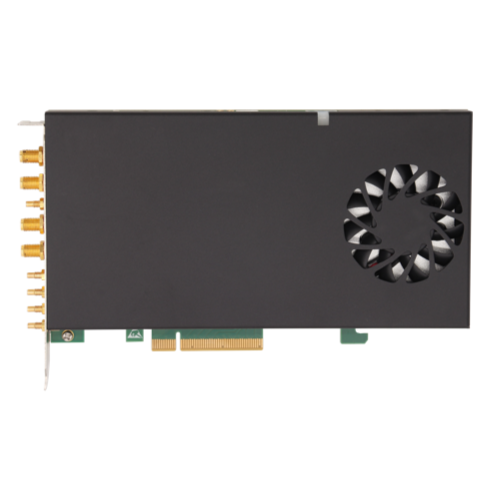

LD817x-3G14 Introduction
